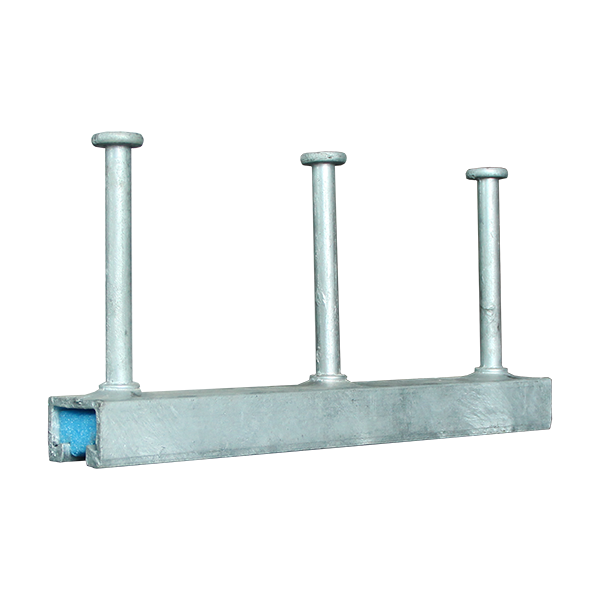

Embedded channel
- PRODUCT DETAIL
Packaging parameters:
|
Product model |
Quantity (sets/carton) |
Package size（cm） |
Package weight (kg/carton) |
|
JCM-30/20 |
|
|
|
|
JCM-38/23 |
|
|
|
|
JCM（H）-50/25 |
|
|
|
|
JCM（H）-50/30 |
|
|
|
|
JCM（H）-52/34 |
|
|
|
Technical parameters(mm)
|
Product model |
Channel width |
Channel height |
Buried depth(min) |
Channel opening |
Margin(min) |
|
JCM-30/20 |
30.0 |
20.0 |
80.0 |
14.0 |
100.0 |
|
JCM-38/23 |
38.0 |
23.0 |
97.0 |
18.0 |
150.0 |
|
JCM（H）-50/25 |
50.0 |
25.0 |
94.0 |
23.0 |
75.0 |
|
JCM（H）-50/30 |
50.0 |
30.0 |
95.0 |
23.0 |
75.0 |
|
JCM（H）-52/34 |
52.0 |
34.0 |
155.0 |
23.0 |
100.0 |
Design Parameters（KN）
|
Product model |
Tension load |
Shear load |
Load along the groove (restricted to sawtooth groove) |
|
JCM-30/20 |
12.0 |
12.0 |
10.0 |
|
JCM-38/23 |
17.0 |
17.0 |
16.0 |
|
JCM（H）-50/25 |
17.0 |
20.0 |
-- |
|
JCM（H）-50/30 |
17.0 |
23.0 |
-- |
|
JCM（H）-52/34 |
31.0 |
40.0 |
31.0 |
