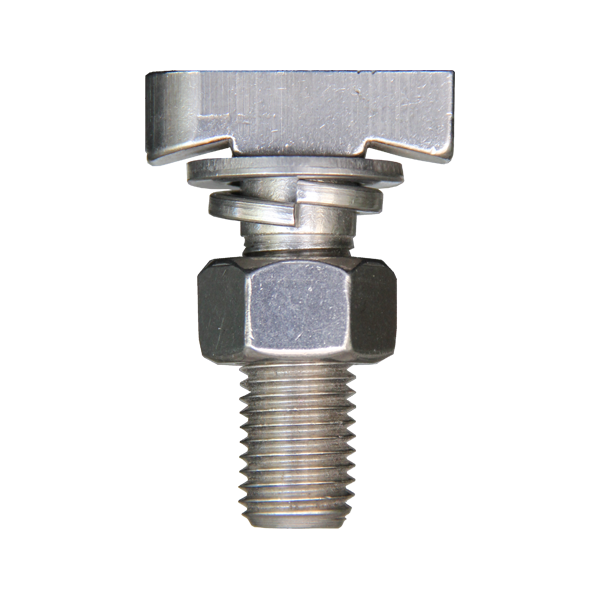

T-bolt
- PRODUCT DETAIL
Packaging parameters:
|
Product model |
Quantity (sets/carton) |
Package size（cm） |
Package weight (kg/carton) |
|
M12 |
|
|
|
|
M16 |
|
|
|
|
M20 |
|
|
|
Technical parameters(mm)
|
Product model |
Material |
Length（mm） |
Tension（kN） |
Shear（kN） |
Bending moment（N·m） |
|
M12 |
8.8级钢 A2-70 A4-80 |
40-200 |
44.1 |
27.2 |
83.8 |
|
M16 |
50-200 |
82.5 |
50.1 |
213.1 |
|
|
M20 |
60-200 |
130.3 |
77.4 |
415.2 |
Model
|
Product model |
M12 |
M16 |
M20 |
|||
|
Toothed |
Toothed |
No tooth |
Toothed |
No tooth |
||
|
JCM-30/20 |
Toothed |
√ |
|
|
|
|
|
JCM-38/23 |
Toothed |
√ |
√ |
|
|
|
|
JCM（H）-50/25 |
No tooth |
|
|
√ |
|
|
|
JCM（H）-50/30 |
No tooth |
|
|
√ |
|
|
|
JCM（H）-52/34 |
Toothed |
|
√ |
|
√ |
|
|
No tooth |
|
|
√ |
|
√ |
|
Mounting torque
|
Product model |
Mounting torque（kN） |
|
|
M12 |
Toothed |
120 |
|
M16 |
Toothed |
200 |
|
No tooth |
60 |
|
|
M20 |
Toothed |
350 |
|
No tooth |
120 |
|
