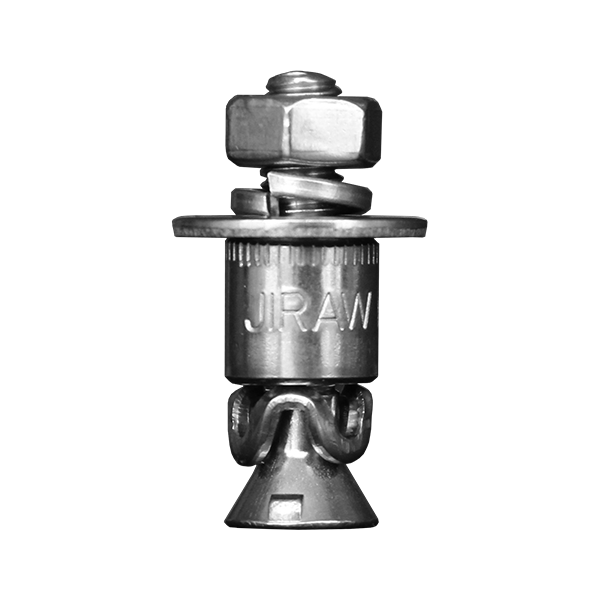

Anchor Bolt I
- PRODUCT DETAIL
Packaging parameters:
|
Product model |
Quantity (sets/carton) |
Package size（cm） |
Package weight (kg/carton) |
|
M6×15×32（A2/A4） |
|
|
|
|
M8×15×32（A2/A4） |
|
|
|
P.s. Listed models are regular products, other non-conventional product packaging parameters please contact Jiraw to obtain.
Technical parameters(mm)
|
Product model |
Anchorage depth（mm） |
Drilling diameter（mm） |
Extension hole diameter（mm） |
Material |
Substrate thickness(min) |
|
M6×11×15 |
15.5±0.5 |
11±0.3 |
13.5±0.3 |
A2 |
25 |
|
M6×11×18 |
18.5±0.5 |
30 |
|||
|
M6×11×20 |
20.5±0.5 |
35 |
|||
|
M8×13×15 |
15.5±0.5 |
13±0.3 |
15.5±0.3 |
25 |
|
|
M8×13×18 |
18.5±0.5 |
30 |
|||
|
M8×13×20 |
20.5±0.5 |
35 |
|||
|
M6×11×15 |
15.5±0.5 |
11±0.3 |
13.5±0.3 |
A4 |
25 |
|
M6×11×18 |
18.5±0.5 |
30 |
|||
|
M6×11×20 |
20.5±0.5 |
35 |
|||
|
M8×13×15 |
15.5±0.5 |
13±0.3 |
15.5±0.3 |
25 |
|
|
M8×13×18 |
18.5±0.5 |
30 |
|||
|
M8×13×20 |
20.5±0.5 |
35 |
