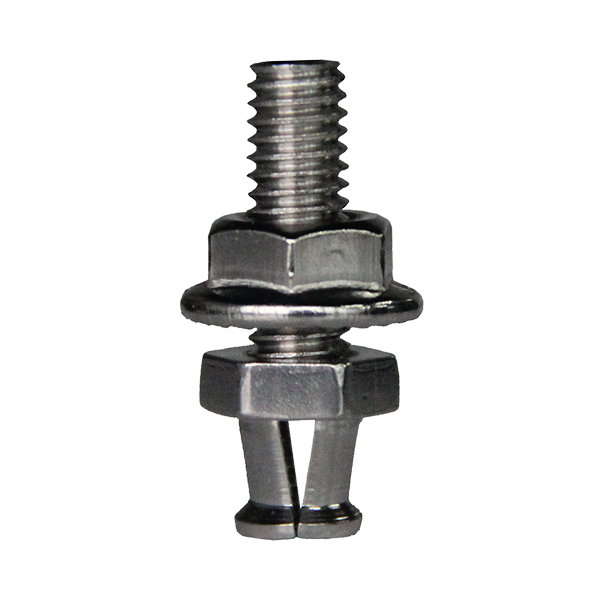

Undercut-anchor-II
- PRODUCT DETAIL
Packaging parameters:
|
Product model |
Quantity (sets/carton) |
Package size（cm） |
Package weight (kg/carton) |
|
M6×7（A2/A4） |
|
|
|
|
M6×9（A2/A4） |
|
|
|
|
M6×12（A2/A4） |
|
|
|
P.s. Listed models are regular products, other non-conventional product packaging parameters please contact Jiraw to obtain.
Technical parameters(mm)
|
Product model |
Anchorage depth（mm） |
Drilling diameter（mm） |
Extension hole diameter（mm） |
Material |
Substrate thickness(min) |
|
M6×5 |
5.2±0.2 |
7.3±0.3 |
9.5±0.3 |
A2 |
10 |
|
M6×7 |
7.2±0.2 |
12 |
|||
|
M6×9 |
9.2±0.2 |
16 |
|||
|
M6×12 |
12.3±0.3 |
20 |
|||
|
M6×15 |
15.3±0.3 |
25 |
|||
|
M8×15 |
15.3±0.3 |
9.3±0.3 |
11.5±0.3 |
25 |
|
|
M8×18 |
18.3±0.3 |
30 |
|||
|
M6×5 |
5.2±0.2 |
7.3±0.3 |
9.5±0.3 |
A4 |
10 |
|
M6×7 |
7.2±0.2 |
12 |
|||
|
M6×9 |
9.2±0.2 |
16 |
|||
|
M6×12 |
12.3±0.3 |
20 |
|||
|
M6×15 |
15.3±0.3 |
25 |
|||
|
M8×15 |
15.3±0.3 |
9.3±0.3 |
11.5±0.3 |
25 |
|
|
M8×18 |
18.3±0.3 |
30 |
